Grundfos UPS2 32-125 180 AUTO Water Circulating Pump Apply To Commercial Heating Domestic Hot Water Circulation

UPS2 32-125 180 AUTO

Grundfos UPS2 circulator pumps feature advanced control modes enabling adjustment of pump performance to the actual system requirements in heating systems. The motor is based on permanent-magnet and compact-rotor technology

securing silent operation and low energy consumption. With AUTOADAPT, the UPS2 provides a plug and play control option with the touch of a button where the pump continuously adapts to the system demands providing comfort to the homeowner while using the least amount of energy.

Circulating Pump UPS2 32-125 180 AUTO Item number 93094791 Suitable for Commercial heating Domestic hot water circulation Circulating pump

Product Name: UPS2 32-125 180 AUTO
Product Number: 93094791
EAN Number: 5715467695212
Price:
Technology:
Rated Flow Rate: 4 m³/h
Rated Head: 8.75 meters
Maximum Head: 125 decimeters
TF Rating: 95
Approvals: CE
Materials:
Pump Casing: Cast Iron
Pump Housing: EN 1561 EN-GJL-150
Pump Casing: ASTM A48-25B
Impeller: Composite
PES 30% GF + PESU-GF20%

Installation
Ambient temperature range: 0.. 40 °C
Maximum operating pressure: 10 bar
Pipe connection standard: EN 1092-2
Interface type: G
Size of connection: 2 inches
Pressure rating for pipe connection: PN 10
Port-to-port length: 180 mm
Liquid
Liquid conveyed: Water
Liquid temperature range: 2.. 95 °C
Liquid temperature during operation: 60 °C
Density: 983.2 kg/m³
Electrical data
Power input P1: 180 W
Power supply frequency: 50 / 60 Hz
Rated voltage: 1 x 230 V
Maximum current consumption: 1.37 A
Minimum current: 0.33 A
Encapsulation class (IEC 34-5): X2D
Insulation class (IEC 85): F
Self-protection standard: NONE
Thermal protection: ELEC
Others
Energy (EEI): 0.23
Terminal box position: 9H
Net weight: 2.7 kg
Gross weight: 2.9 kg
Transport volume: 0.008 m³

Domestic hot water circulating pump

Commercial heating water circulating pump

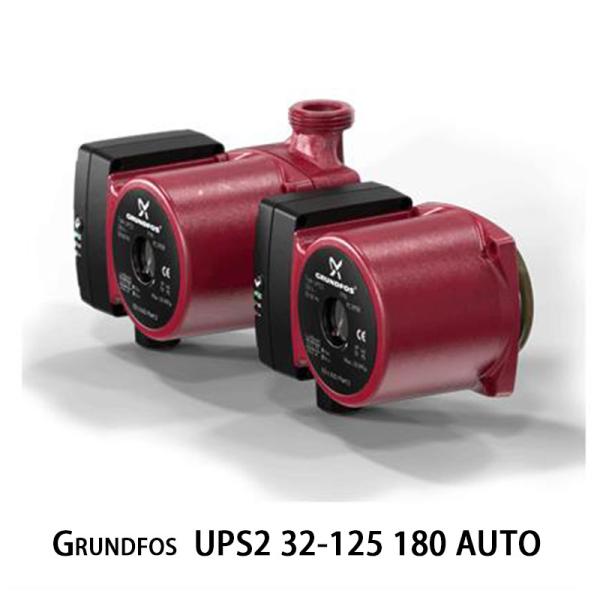

Grundfos UPS2 32-125 180 AUTO Water Circulating Pump Apply To Commercial Heating Domestic Hot Water Circulation Images
